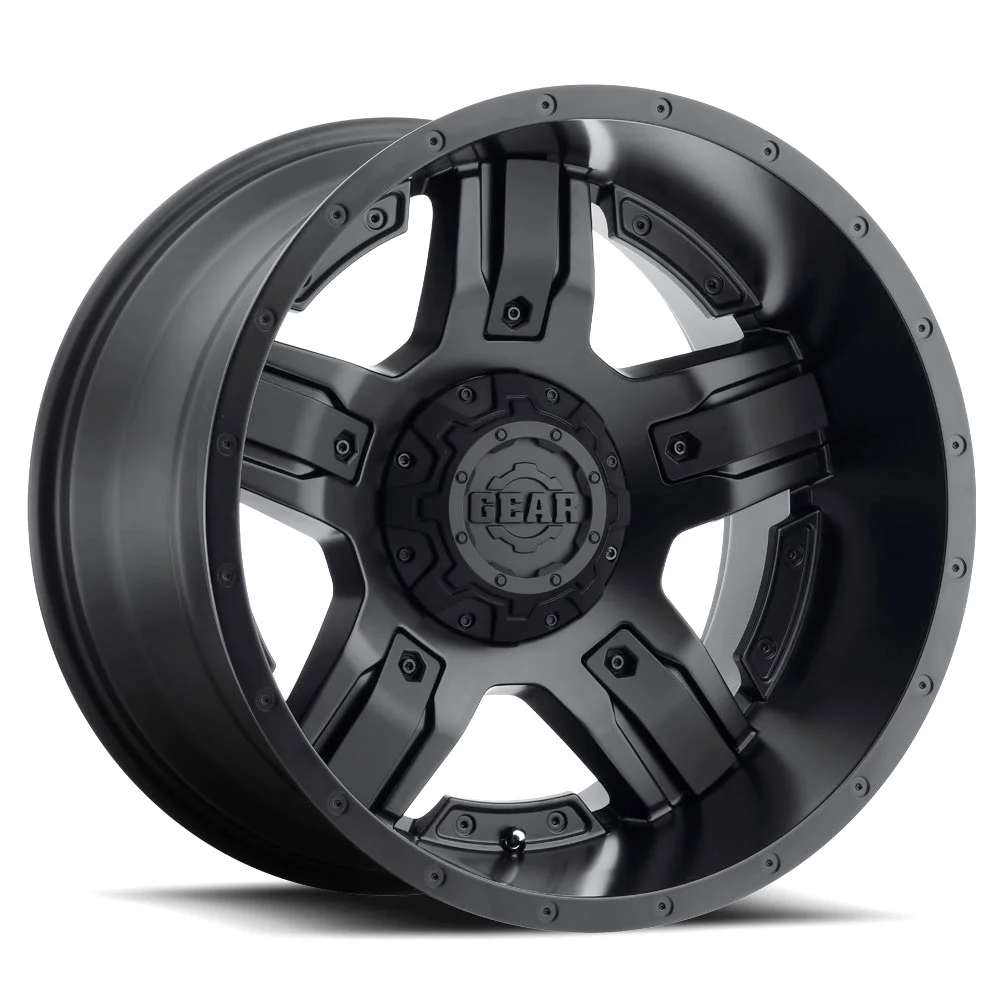

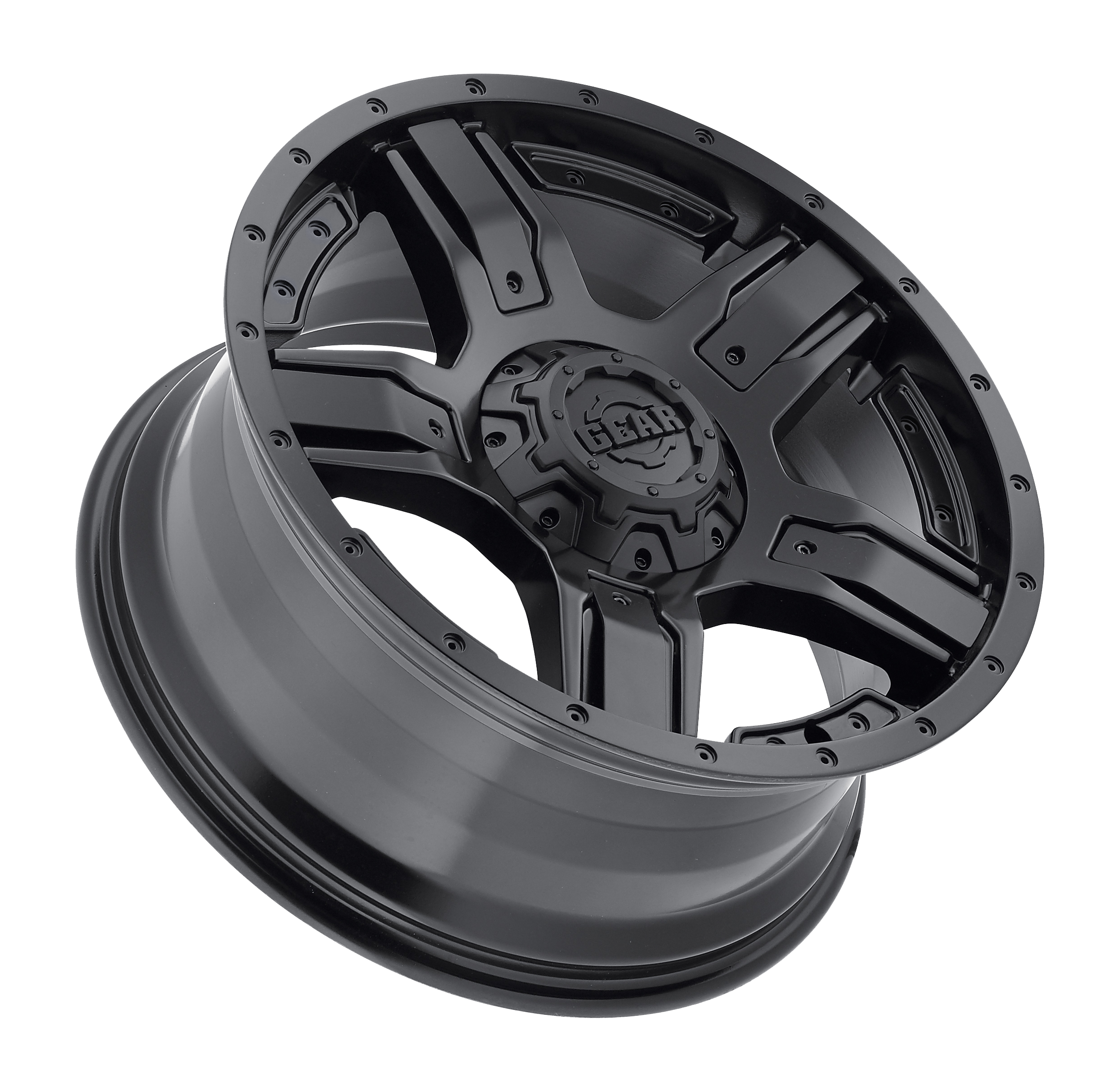

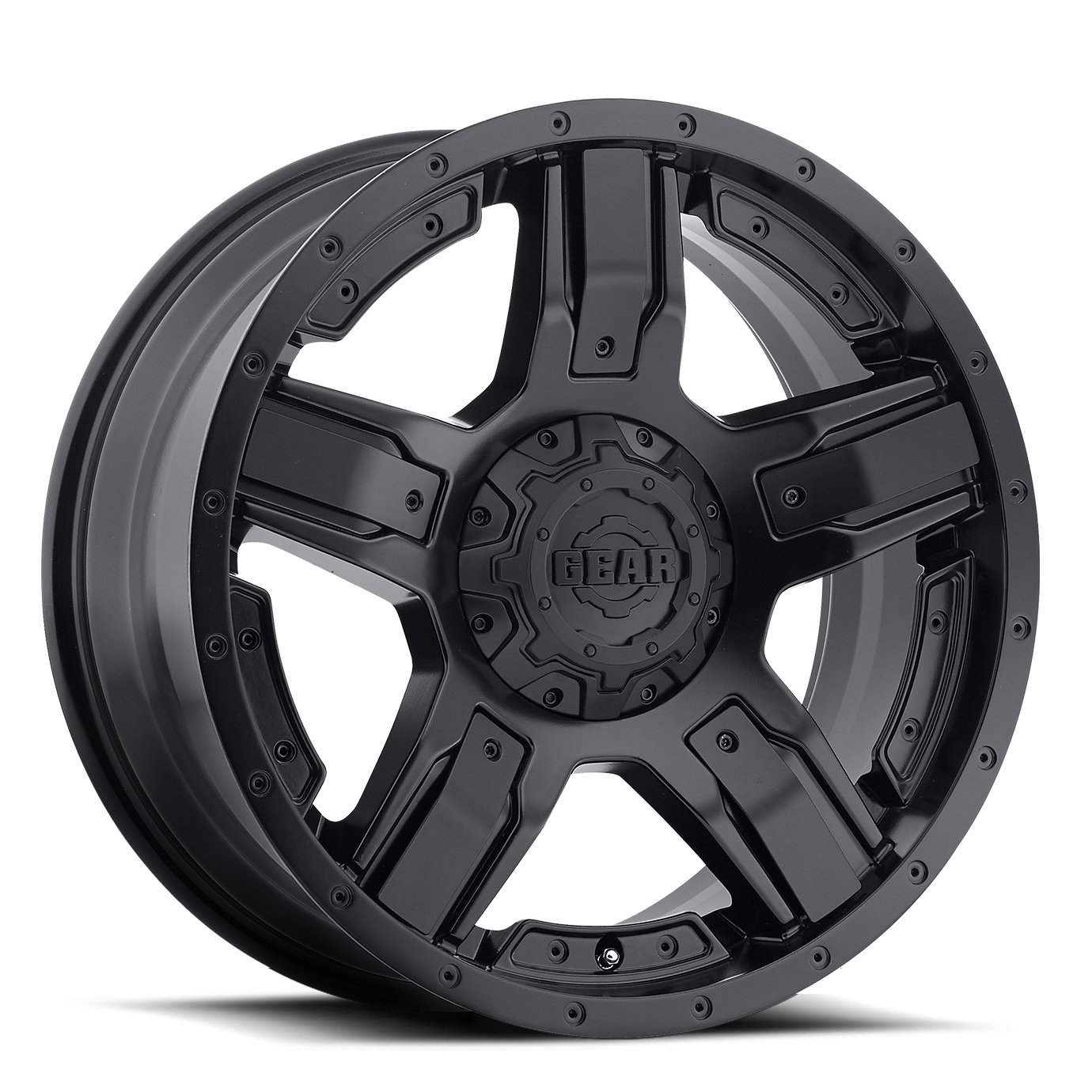

SATIN BLACK WITH CUSTOMIZABLE SATIN BLACK SPOKE INSERTS



AVAILABLE IN: 17" 18" 20"



5/6 LUG  |  8 LUG

PATENT PENDING





WHEEL SPECIFICATIONS

Part Number Wheel Size Bolt Circle Bolt Circle 2 Offset (mm) Back Spacing Hub Bore (mm)
740B-7900912 17X9 5X5.00 5X5.50 -12 4.53 78.00
740B-7906812 17X9 6X135 6X5.50 -12 4.53 108.00
740B-7906818 17X9 6X135 6X5.50 +18 5.71 108.00
740B-7908118 17X9 8X6.50 +18 5.71 130.18
740B-7908718 17X9 8X170 +18 5.71 130.18
740B-8900510 18X9 5X4.50 5X5.00 +10 5.39 78.00
740B-8905218 18X9 5X5.50 5X150 +18 5.71 110.00
740B-8906818 18X9 6X135 6X5.50 +18 5.71 108.00
740B-8908118 18X9 8X6.50 +18 5.71 130.18
740B-8908718 18X9 8X170 +18 5.71 130.18
740B-8908918 18X9 8X180 +18 5.71 125.00
740B-8907025 18X9 6X120 6X5.50 +25 5.98 78.00
740B-2105225 20X10 5X5.50 5X150 -25 4.52 110.00
740B-2106825 20X10 6X135 6X5.50 -25 4.52 108.00
740B-2108125 20X10 8X6.50 -25 4.52 130.18
740B-2108725 20X10 8X170 -25 4.52 130.18
740B-2100825 20X10 5X5.00 5X135 -25 4.52 87.00
740B-2125244 20X12 5X5.50 5X150 -44 4.77 110.00
740B-2126844 20X12 6X135 6X5.50 -44 4.77 108.00
740B-2128144 20X12 8X6.50 -44 4.77 130.18
740B-2128744 20X12 8X170 -44 4.77 130.18
740B-2090500 20X9 5X4.50 5X5.00 +00 5.00 78.00
740B-2095200 20X9 5X5.50 5X150 +00 5.00 110.00
740B-2096800 20X9 6X135 6X5.50 +00 5.00 108.00
740B-2095218 20X9 5X5.50 5X150 +18 5.71 110.00
740B-2096818 20X9 6X135 6X5.50 +18 5.71 108.00
740B-2098118 20X9 8X6.50 +18 5.71 130.18
740B-2098718 20X9 8X170 +18 5.71 130.18
740B-2098918 20X9 8X180 +18 5.71 125.00
740B-2097025 20X9 6X120 6X5.50 +25 5.98 78.00
